BLADDER

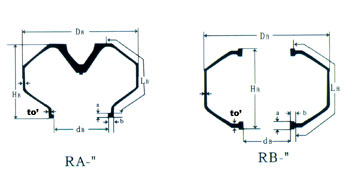

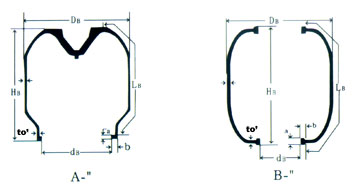

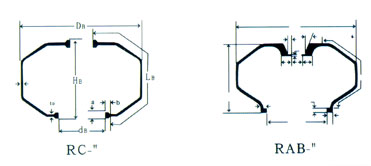

Bladder code Reference size Crown guage c (mm) Foot ID Db (mm) Foot height a (mm) Foot width b (mm) Neck gauge To (mm) Outside Diameter DB (mm) Oever-all Height HB (mm) Effective Periphery LB (mm) Weigtht (Kilos) Etch page B300-4 4 56 16 7 8 130 156 175 2 B4001* 4 42 16 6.5 6.5 108 240 252 1 B4002* 4 42 19.5 6 9 116 276 294 1 B4003* 4 42 16 7 6.5 113 186 212 2 B4004* 5 67 16 6 6 140 191 213 2 B4004 5 67 16 6 7 140 191 213 1 B6002 6 84 18.5 8 7 152 303 314 2 B6002* 6 84 18.5 8 7 152 303 314 1 B6004 6 84 18.5 8.5 8.5 155 320 348 2 B5001 6 84 18.5 8 7 150 217 221 2 B5001* 6 84 18.5 8 6.5 150 217 227 2 B350-6 6 90 16 8 7 200 180 225 2 B5003* 6 84 18.8 8.5 8 150 248 260 2 B6001* 6 84 18 6.5 7 152 324 338 1 B6003* 6 84 18.5 8 7 153 320 346 1 B6004* 6 84 18.5 8.5 8.5 155 320 348 1 B6005* 6 84 18.5 8 8 155 316 348 1 B6006* 6 84 19 8.5 7 174 320 348 1 B4501* 6 67 16 6 6 145 260 280 2 B81* 7 96 15 8 8 190 320 348 2 B6501* 8 114 22 11.5 9 230 322 358 2 B8501* 8 114 22 11.5 8.5 210 434 462 2 B9501* 8 118 23.5 10.5 10 252 408 468 2 B400-8 8 116 22 11 6.5 205 262 288 2 B350-8 8 120 16 8 7 228 230 260 2 B22*11-8 8 118 23.5 10.5 10 305 480 540 2 B18*19.5-8 8 118 23.5 10.5 10 252 358 418 2 B61 8 114 22 11.5 9 230 322 358 2 B4171 8 117.6 16.8 11.2 8.4 215.9 260.4 284 2 B9-2 9 165 17 10 9 350 486 520 2 B85 10 180 20 12 9 300 300 320 2 B84 10、11 180 20 12 9 310 360 390 2 B3501 10 183 13 6 7 250 250 326 2 B3501* 10 183 13 6 6 250 250 276 3 B1101* 10 183 13 6 6 248 300 326 8 B12-2 12 220 21 12.5 11 360 525 542 2 B5002* 12 228 20 12 9 346 300 332 4 B6007* 12 220 21.5 12.5 8.5 378 300 340 7 B6008* 12 236 22 10 7 323 320 342 1 B1201* 12 235 15 6.5 6.5 298 240 258 3 B83 11、12 200 18 12 8 300 370 400 2 B4776 12 203.2 20.8 11.2 9.7 301.8 311.2 340.4 2 B4001 12 235 15 6.5 6.5 300 240 258 2 B6228* 13-15 218.4 20.8 12.7 9.7 386.1 346.5 410 3 B7632* 13-15 218.4 20.8 12.7 9.7 386.1 407.9 473.5 3 B6009* 14 220 21 12 8.3 378 341 380 7 B6297* 14 247.7 20.8 12.7 9.7 405.9 464.3 496.8 3 B6502* 14 260 24 13 10.5 400 404 442 3 B7001* 14 280 23 11.5 9.5 430 412 450 3 B2752* 14 284 15.5 8 7.5 355 178 193 3 B15-1 15 295 21 12.5 11 488 770 790 2 B6319* 15 276.4 21.8 12.7 9.7 444.5 468.9 537.5 1 B6391* 15 276.4 21.8 12.7 9.7 409.2 463.6 499.4 3 B7002* 15 300 24 12 11 430 416 454 3 B7632* 13-15 218.4 20.8 12.7 9.7 386.1 407.9 473.5 3 B6503* 16 310 25 12.5 10 437 380 408 3 B6506* 16 310 25 13 8 456 380 410 4 B6507* 16 310 24.5 13.5 10 396 422 432 3 B6508* 16 310 22 11.5 10 480 400 450 3 B6509* 16 310 23 13 10 430 346 384 3 B7003* 16 310 23 11.5 8 445 402 432 4 B7501* 16 310 25 13 8 486 450 492 4 B1102* 16 335 12.5 9 6 405 264 284 3 B3251* 16 334 15.5 8 7.5 403 237 251 3 B6501 16 310 25 13 9 456 380 408 1 B7001 16 310 23.5 11.5 8.5 445 402 430 2 B7501 16 310 25 13 9 486 450 492 1 B2251* 17 360 15.5 8 7.5 430 155 170 3 B3001* 17 360 13 5 6 430 233 262 3 B12001* 18 340 27 13.5 13 623 650 764 3 B2751* 18 385 13 4 6 455 226 234 3 B12001* 18 340 27 13.5 13 623 650 764 3 B8251* 20 360 27.5 14.5 13 480 520 556 3 B8252* 20 360 28 14 12.8 536 610 664 3 B8253* 20 380 27.5 13.5 14 576 560 602 4 B9001* 20 360 27 13.5 13 620 554 638 3 B9002* 20 360 27 15.5 13 620 554 638 3 B9004* 20 360 28 14 12 600 580 635 4 B9005* 20 360 27 13 13 580 600 646 4 B9006* 20 360 27 14 12.5 580 590 670 3 Liaolun No3* 20 384 28 12.7 12.5 570 646 590 1 B9009* 20 380 28 14 12 600 580 636 4 B90010* 20 380 26.5 14 13.5 590 584 648 3 B90011* 20 380 27 14 12.5 590 584 650 3 B90012* 20 380 26.5 14.5 13.5 590 584 650 1 Liaolun No.1* 20 386 28 12.7 12.5 574 586 630 1 B10001* 20 360 26.5 14 13 630 626 734 3 B10002* 20 380 26.5 13 12.5 630 626 712 3 B11001* 20 360 27.5 15.5 14.5 624 644 716 4 B11002* 20 360 27.5 13.5 14 620 624 728 3 B11003* 20 360 27 13 14.6 588 700 770 4 B11004* 20 380 27 14 13 620 624 708 3 B12002* 20 380 26.5 13.5 12.7 660 690 792 4 B14001* 20 380 30 15 14.5 630 846 906 3 TB20-1* 20 384 27 14.5 14.5 571 458.5 542 4 TB20-3* 20 384 27 14.5 14.5 650 548 630 4 B8251 20 360 27.5 14.5 13 535 530 590 1 B9001 20 360 27 14 13 618 552 637 1 B9002 20 360 28 14 12 600 578 634 1 B9003 20 380 27 14 13 590 582 649 1 B9004 20 380 27 14 10 571 560 605 1  B20-1 20 384 27 13.5 14.5 571 458.5 542 1 B20-3 20 384 27 13.5 14.5 650 548 630 1 B10001 20 380 27 14 13 630 626 650 1 B10002 20 360 27 14 13 630 626 650 1 B11001 20 360 27 14 12 640 630 660 2 B12001 20 380 27 13.5 13 660 670 790 1 B12002 24 460 28 15.5 14 710 670 730 1 B15001 24 460 28.5 14 15.5 770 872 996 2 B12005 24 440 28 14 14 700 680 736 2 B14.9-24 24 444.5 32 16 15.4 695 760 818 2 B1751 25 470 28 13 14 714 850 905 2 B2051 25 470 38 15.5 23 830 990 1085 2 B2351 25 470 36 14.5 22.5 830 1100 1196 2 B2651 25 470 38 15.5 23 890 1350 1470 2 B2951 25/29 470 39 15.2 23 950 1400 1551 2 B12.4-28 28 530 28 14 12 724 635 704 2 B1841 30 600 29 14 14 930 899 1010 2 B3301 33 648 39 15.5 23 1085 1520 1634 2 B24.00-35 35 648 38 15.2 22 1020 1336 1414 2 B20.8-38 38 838 33.8 16 17 1020 950 1000 2 B18.4-38 38 749 33.8 16 17 960 940 1000 2 B45/65-45 45 902 38.1 15.2 22 1365 1854 1933 2 B36.00-51 51 952 38.1 15.2 22 1384 1900 2052 2 B2700-49 49 952.5 38.1 15.5 22 1371 1591 1649 2 B40.00-57 57 1130 39 15.2 22 1780 2200 2456 2 ZX21-1* 21 487 18 9 5 560 96 113 1 B12003* 24 460 28 15.5 14 710 672 730 3 B12004* 24 470 28 12 12.5 662 616 680 3 B12005* 24 470 28 13 13 714 706 780 3 B15001* 24 460 28.5 14 15.5 770 872 996 3 B1751* 25 470 28 12.5 13 714 850 910 1 B1752* 25 470 36 15.5 18 714 802 880 2 B2051* 25 470 38 15.5 25 830 990 1090 1 B2351* 25 470 36 14.5 22.5 830 1100 1200 1 B1691* 28 587 29 12 16.2 790 807 858 3\4 B1841* 30 600 28.5 14 16 930 900 1010 3 B1842* 30 609 31 15 14.5 862 906 943 4 B30.5* 32 686 29 13.5 12.7 1050 1300 1397 1 DK5421* 32 686 29 13.5 12.7 889 1230 1269 DK6571* 33 648 39 15.5 23 959 1092 1163 B2651* 33 470 36 15.5 23.2 890 1350 1450 3 B1843* 34 716 30 16 15.3 960 940 979 3 B1844* 34 600 30 18 17.5 862 936 1004 3\4 B301* 36 470 36 15 23.5 890 1454 1550 1 B1241* 38 827 25 12.5 11.2 1020 634 693 3 B1502* 38 827 25 12 13.5 1020 700 756 3 B1845* 42 850 36 15 16 1120 880 918 1 B2301* 48 914 31 15 14 1150 430 516 1 DK4011* 49 953 39 15.5 23 1372 1590 1680 1 B82* 14.5 267 22 13.5 8 431 400 434 4 B18-1 15-16.5 310 24 12 11 664.5 720 860 2  Liaolun No.11*  17.5   310  28.4   12 1, 2 460   470  504    3 Xin Liaolun No.9* 22.5 384 28.4 12 12.7 712 456 576 3 Liaolun No.12* 22.5 384 28.4 12.7 12.7 675 746 825 3 Liaolun No.13* 19.5 340 28.4 12 12 510 494 538 3 22.5D* 22.5 430 28 13 12 790 510 678 4 Liaolun No.10* 22.5 384 28.4 12.7 12.7 588 719 770 3 B10.00/75-15.3 15.3 310 23.5 11.5 8.5 445 452 472 2 B10*16.5 16.5 310 24 12 10 486 450 493 2 B12*16.5 16.5 310 24 12 10 500 550 593 2 B12*16.5 16.5 310 24 12 10 500 580 623 2 B10-16.5 16.5 276.4 22.4 12 8.9 402.3 485.9 514 1 B12-16.5 16.5 276.4 22.4 15.3 8.9 402.3 558.9 546 1 B33*15.5-16.5 16.5 279.4 25 14.7 8.6 431.8 601.2 630 1 B17-1 15/16.5 310 24 12 11 568 670 750 2 B18-1 15-16.5 310 24 12 11 664.5 720 860 2 B12-16.5* 16.5 310 25 13 8 500 600 644 4 LiaoLun No.7* 19.5 340 28.4 12 12 490 442 476 3 B8 7 96 15 8 8 190 320 348 2 A650-1 16 310 12.5 17.5 9.5 440 470 520 1 A750-1 16 310 13 19 11 472 470 535 1 A6502 16 260 12.5 16 8 430 460 530 2 A20-1 20 425 20.3 22 13.5 580 590 814.5 1 A20-3 20 425 20.3 22 13.5 640 704 925.1 1 A7001 20 350 18 21 10 520 466 563 2 A4001* 12 262 12.5 15 7 334 262 325 3 A5001* 12 262 12 14 6.5 350 334 367 3 A5601* 13 262 13.5 14 7.5 385 390 438 4 A6501* 14 262 12.5 13 6.5 380 420 480 4 A6502* 14 262 13.5 14 7 420 394 456 5 A6503* 16 262 12 15.5 8.5 403 473 525 6 A6504* 16 262 12.5 15 7 420 471 525 3 A6505* 16 262 12.5 15.5 8 400 476 534 3 A6506* 16 262 12 14.5 7.5 440 472 545 6 A6508* 16 310 12.5 17.5 8 440 455 512 4 A6509* 16 310 12 17 9.5 440 450 512 4 A65010* 16 310 12.5 17.5 9.5 440 470 520 3 A65011* 16 310 12.5 18 10 443 457 522 1 A65012* 16 310 12 17 9 440 483 547 3 A7501* 16 310 12.5 18 9.5 510 485 593 3 A7001* 20 350 18 21 10 520 466 563 4 A7502* 20 350 18 21 9.5 540 475 570 3 A8251* 16 310 12.5 18.5 9.5 520 526 630 3 A9001* 20 395 18 21.5 11 590 567 660 3 A9002* 20 425 17.5 24 12.5 635 540 678 4 A10001* 20 429 20 22.5 12.5 638 649 764 4 A11001* 20 429 20 22.5 12.5 638 649 764 4 A12001* 20 429 20 22.5 12.5 638 675 814 4 A3.00-10 10 185 12.5 14.5 7 298 332 380 3 TA20-1* 20 425 20.3 22 12 580 590 814.5 4 TA20-3* 20 425 20.3 22 12 640 704 925.1 4 RB6009* 9 150 18 10 8 360 250 336 3 RB13-1* 12、13 232 22 13.5 10 412.6 211 281 4 RB13-2* 12、13 232 22 13 10 460 265.8 353 4 12-S-312 12 225 20.5 9.5 9.5 396 264 312 1 12-S-282 12 225 20.5 9.5 9.5 370 240 282 1 13-S-288 13 234 22.8 13.4/11.9 11 378 245 288 1 13-S-317 13 234 22.8 13.4/11.9 11 405 263 315 2 13-S-342 13 234 22.8 13.4/11.9 11 422 285 342 1 RB14-0* 13 250 22 13 9.5 455 254 345 4 RB14-1* 13 250 22 12 9.5 470 267.5 370 4 RB14-2* 13 250 22 12.5 9.5 520 282 418 4 RB14-3* 13 250 22 13 9.5 545 322.5 467 4 14-S-344 14 258 22.8 13.4/11.9 11 430 304 344 1 RB15-2* 14 276 21 12 9 505 405 485 4 RB15-3* 14 277 21 13 9 546 187 369 4 15-S-362 15 283 24.8 13.4/11.9 11 466 330 362 1 15-S-428 15 283 24.8 13.4/11.9 11 526 360 428 1 RB16-0* 15 299 22 12.7 10 588 297.4 471.6 4 RB16-1* 15 299 22 24 10 510 411 485 4 RB16-2* 15 299 22 12.7 10 570 466.4 561 4 RB1951* 15 285 21 12 7 500 310 393 4 RB2351* 15 285 21 12 7 635 374 526 4 RB2051* 15 267 21 13.5 7 550 324 440 4 RB1451* 12\13 224 21 13 7.3 460 235 335 4 RB1452* 12\13 234 23 13 7.5 440 248 320 4 RB1651* 14 248 21 12.5 7 490 275 370 4 RB14* 14 225 19 12.5 7 460 310 405 2 RB15-5* 15 285 21 12 7 565 330 456 1 RB1851* 15\16 277 21 13 7 550 325 435 4 16-S-376 16 309 24.8 13.4/11.9 11 484 340 376 1 16-S-472 16 309 24.8 13.4/11.9 11 574 390 472 1 RB2352* 16 310 21 12 7 680 380 549 4 RB7501* 16 300 25 14 11 650 370 528 3 RB7001* 16 310 21 12 7 635 324 473 1 RB2052* 16 310 21 12 7 535 334 410 1 RB2252* 16 310 21 12 7 560 350 444 1 RB1952* 16 310 21 12 7 475 293 351 1 RB17-1* 17 336 21 12 7 525 280 360.5 1 RB2651* 17 336 21 12 7 670 420 559 1 RB2152* 18 356 23 12 7 500 310 351 1 RB2251* 18 356 23 12 7 535 328 386 2 RB18* 18 353 24 12.9 8 550 364 432 1 RB20* 20 396 24 12.5 8 570 350 404 1 RB-0 20 406 20.4 22.4 12.7 800 400 467 3 RB8251* 20 384 25.25 12.2 12.7 650 460 550 3 RB9001* 20 380 24 12 12.5 660 570 650 3 RB9002* 20 380 24 13 12 710 540 650 3 RB9002* 20 380 23 14 11 710 540 660 4 RB9003* 20 380 24 14 13 830 470 670 3 RB9004* 20 374 21 12.5 12 730 440 594 4 RB10001* 20 380 24 14 13 830 470 670 3 RB10002* 20 374 22 13.5 13 828 470 680 3 RB11001* 20 374 21 13 11 828 540 750 3 RB11002* 20 380 24 14 12 850 540 744 4 RB12001* 20 374 21 12 11 740 630 740 4 RB12002* 20 380 24.5 13.5 12 710 620 765 4 RB12003* 20 380 24 14 12 850 540 744 4 RB14002* 20 372 21.5 14 13.5 830 658 860 3 RB23.5R25 25 512 36 16 16 1140 760 1075 4 RB17.5R25 25 500 36 16 16 1025 520 801.39 4 RB12, 005* 22.5 412 28 15 15.5 940 470 741 4 RB1451 12\13 224 21 13 7.5 460 235 335 1 RB1451 13 224 21 13 7 430 254 335 2 RBSC1401 14 260 21 12 8 464 302 370 2 RB1452 14 260 20 12 10 496 220 350 1 RB1953 14 260 21 12 6.5 462 328 390 1 RBSC1503 15 285 21 12 8 498 310 380 2 RBSC1504 15 285 21 12 8 522 340 422 2 RB1951 15 276 24 12.7 6 490 340 430 1 RB2051 15 285 21 12 6.5 508 360 424 1 RBSC1501 15 285 21 12 8 588 390 495 2 RBSC1502 15 285 21 12 9 680 430 600 2 T16/245T 16 309 24.8 13.4/11.9 11 410 236.4 245 1 T16/300T 16 309 24.8 13.4/11.9 11 410 291.4 300 1 T16/330T 16 309 24.8 13.4/11.9 11 410 321.4 330 1 RB225/50R16 16 300 22 12 7 500 360 430 2 RB7501 16 300 24 12 10 650 370 520 1 RBSC1601 16 310 21 12 8 590 360 460 2 RBSC1602 16 310 21 12 8 310 400 516 2 RBSC1603 16 310 21 12 8 660 450 580 2 RBSC1604 16 310 21 12 8 498 338 394 2 17A 17 331 23 12.5 8 500 320 364 2 RBSC1701 17 336 21 12 8 628 445 538.5 2 RBSC1702 17 336 21 12 8 590 400 481 2 RBSC1703 17 336 24 12 7 475 317 352 1 RBSC1704 17 336 24 12 7 510 343 392 1 RBSC1705 17、18、19 336 24 12 8 584 410 500 2 RB2151 17.5 310 26 13 11 586 382 500 1 18A 18 356 23 12 8 500 336 366 2 18C 18 356 23 12 7 540 310 380 1 CDB18-2 18 340 30 15 11 630 480 570 2 18B 18 356 23 12 7 474 288 329 2 RB2651 19.5 340 26 14 11 660 500 590 1 RB2451 19.5 340 26 13 11 620 430 520 1 RB385/55R19.5 19.5 340 26 14 11 740 620 750 2 RBSC1901 19 380 24 12.7 7 506 320 352 2 A20 20 403 24 12.7 8 590 390 446 1 C20 20 403 24 12.7 8 633 440 510 1 B20 20 396 24 14.7 7 550 360 399 2 RB8251 20 374 21 13 10 700 440 530 1 RB8252 20 374 26 13 10 700 440 530 1 RB9001 20 380 24 13.5 12 750 540 660 1 RB10001 20 380 24 14 13 830 470 680 1 RB10002 20 380 24 14 13 830 470 680 2 RB10003 20 374 22 14 13 830 470 683 1 RB10004 20 380 24 14 13 830 470 680 2 RB10005 20 380 27 14 12 830 470 680 1 RB12001 20 380 24 14 12 850 540 746 2 RB12002 20 380 24 14 12 850 540 746 1 RB12003 20 380 24 14 12 850 540 746 1 RB14001 20 380 24 14 13 850 660 883.5 1 RB11R22.5 22.5 412 27.5 15 15.5 812 480 644 2 RB12004 24 470 24 14 10 900 620 800 1 RB11R24.5 24.5 460 28 14 12 830 580 700 2 RB22/24-1 22/24 454 24 12.9 8 650 440 493 2 RA1451 12 240 14.5 15 9 428 250 310 1 RA1452 13 260 13.5 13 7 460 240 350 2 RA10*208*500 13 240 14.5 15 6 500 271 440 1 RA1651 13 261 13.5 14.5 7 473 265 337.5 1 RA1951 14 261 13.5 14.5 7 510 295 428 2 RA1851 14 260 13.5 15 8 467 320 410 2 RA2051 15 261 13.5 15 8 525 340 490 2 RA2351 16 310 13.5 15 8 620 445 608 2 RA6501 16 310 13 16 8 580 350 510 2 CDA12-13 12\13 261 13.5 15 7 460 225 335 1 RACS15-6 15 314 13.5 16.5 7 584 315 484 2 RACS16-4 16 314 13.5 16.5 6.5 646 360 561.5 2 RA1451* 12 262 12.5 13.5 6.5 450 240 340 4 RA1452* 12 262 12.5 13.5 7 450 240 350 4 RA10*242*515* 13 240 14.5 16 9 515 318 490 2 RA1651* 13 262 13.5 15 7.2 470 285 400 4 RA1652* 13 262 12.5 13 7.3 470 280 410 4 RA1851* 13 262 12.5 15 8 500 325 420 4 RA1852* 14 262 12.5 15 10 520 290 440 3 RA2051* 15 262 12.5 14 8.3 570 300 470 3 RA2151* 15 310 12.5 17.8 9 590 326 480 3 RA13-6* 13 271 13.5 14.5 7 606 279 623 4 RA13-19* 271 13.5 14.5 7 565 206 565 4 RA1553* 262 12.6 13 5.8 451 259 356 4 RA1653* 262 12.6 13 5.8 471 304 409 4 RA1853* 262 12.6 13 5.8 511 303 431   4 RA2053* 262 12.6 13 5.8 540 311 476 4 RA2153* 262 12.6 13 5.8 570 298 512 4 RA12*253*640* 16 285 14.5 15 8.5 640 345 626 2 RA10*215*510* 13 240 14.5 16 9 510 279 468 2 RA12*210*640* 285 14.5 15 8.5 640 305 586 2 RA2351* 16 262 12.5 17 9 670 420 615 4 RA1853CS* 15 314 14.5 6.5 7 490 324 384 2 RA1952CS* 15-16 314 14.5 16.5 7 565 314 439 2 RA2053CS* 16 314 14.5 16.5 7 600 332 475 2

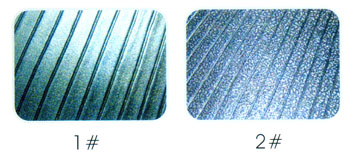

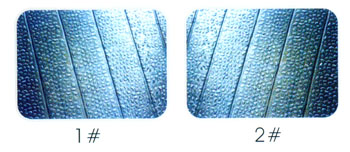

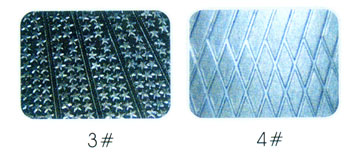

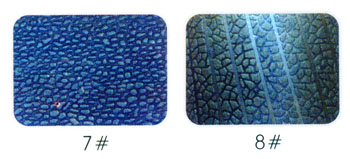

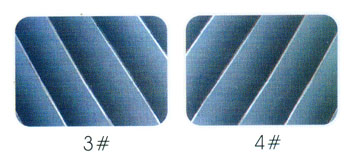

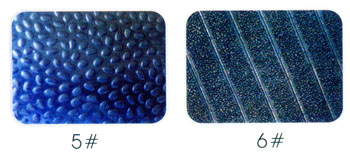

Etch Page Etch Page *
